Product Description

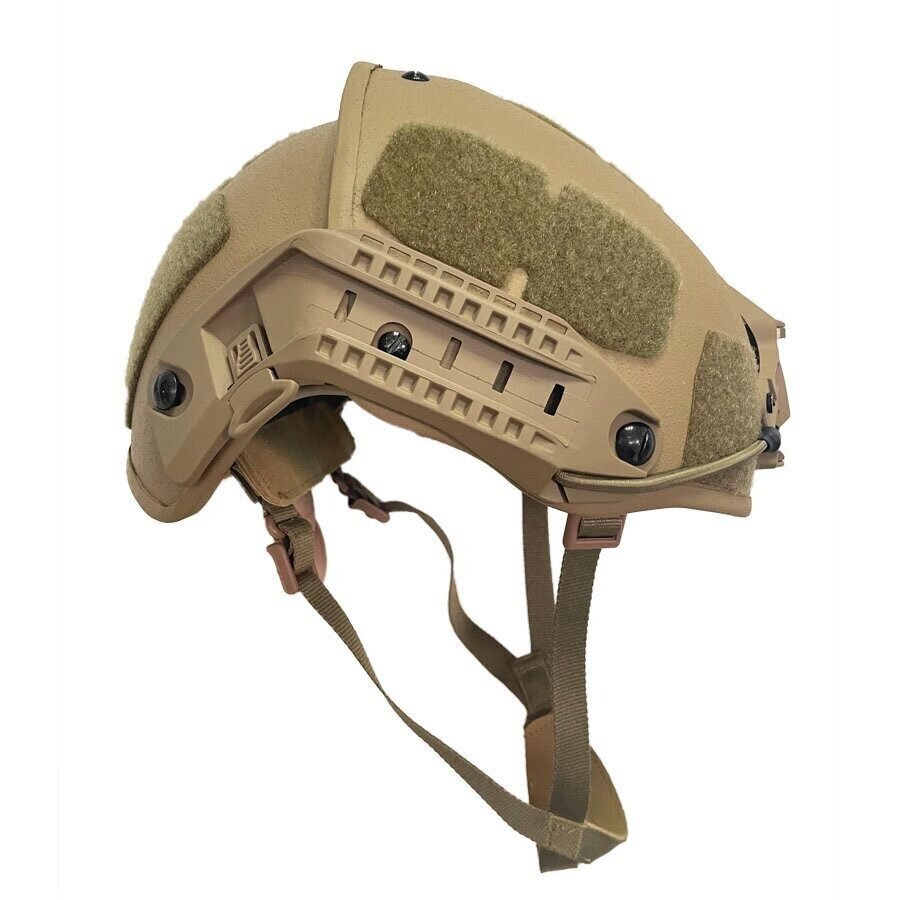

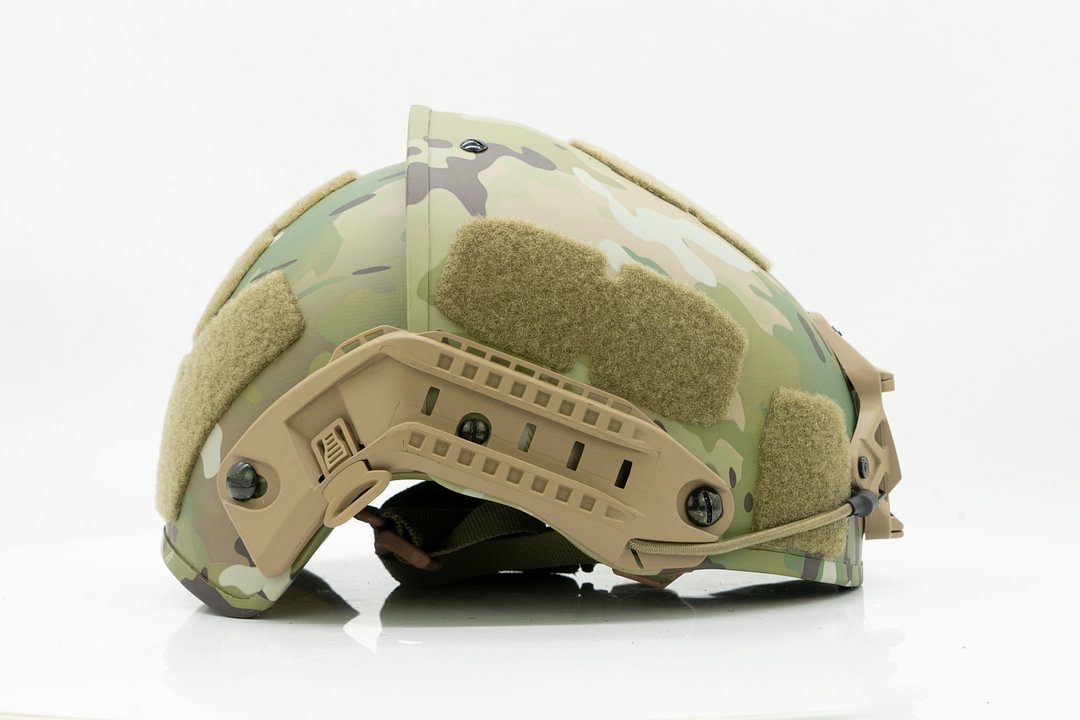

The AF or high cut advanced combat helmet (ACH) offers above the ear (ATE) protection, and is tested by an independent laboratory to NIJ IV specs – it will stop a .44 magnum.

Made from DuPont™ Kevlar® with a front aluminum shroud designed to fit most ballistic helmet accessories, the ballistic helmet weight is 3 lb. 4 oz. before accessories or customizations.

The polymer side rails, fully adjustable padded dial suspension system, and re-positionable closed-cell padding system work together to make this helmet both functional and comfortable. The side rails feature night vision goggle retention (NVG) bungee cords, and the aluminum front shroud accommodates most combat use cases.

HELMET FEATURE

• NIJ Level IV Ballistic Shell - independently tested by H.B. White Laboratories to NIJ-STD-0106.01.
• Unidirectional Aramid Kevlar core; 7.2mm +-0.2mm.
• High Cut helmet style for communications headsets and ear protection.
• ARC 4 position accessory rails.
• Fully adjustable padded dial suspension system (large helmets only) or 7 pad system (extra-large helmets only).
• Curved closed-cell foam pads.
• Aluminum 3 point shroud for mounting optics and accessories. Compatible with most NVG mounts.
• External velcro loop on top, sides, and rear.
• NVG retention bungees.

SPECIFICATIONS

Suspension:

• Large: Adjustable dial suspension.
• Extra-large: 7 pad system.

Shell Size:

• Large: 9" x 6.5" x 11"
• Extra large: 9.5" x 7" x 11.5"

Inner Circumference:

• Large: 22" - 25"
• Extra large: 25" - +30"

Weight:

• Large: 3 lbs. 4 oz.
• Extra-large: 3 lbs. 7 oz.

ACCESSORY DETAILS

ACH Side Rails: Fully compatible with a variety of accessories.

Front Shroud: Universal 3-Pt. NVG Mount

Velcro® Attachments: Standard Velcro® Loop Strips

NIJ LEVEL TEST RESULTS

All HelmetBro helmets are tested to NIJ standards. And because we take your protection seriously, we do our own testing too. Every helmet from every batch is hand inspected for quality, and a random helmet is selected for field testing. If we wouldn't trust it, we won't sell it.

10-YEAR WARRANTY

We offer a 10-year manufacturer warranty on all products sold on our website. This means we guarantee that your product will remain free of manufacturer defects under normal use for 10 years. There will be no mistakes in the helmet within 10 year, and our helmet shell can be used for at least 10 years.
