Description

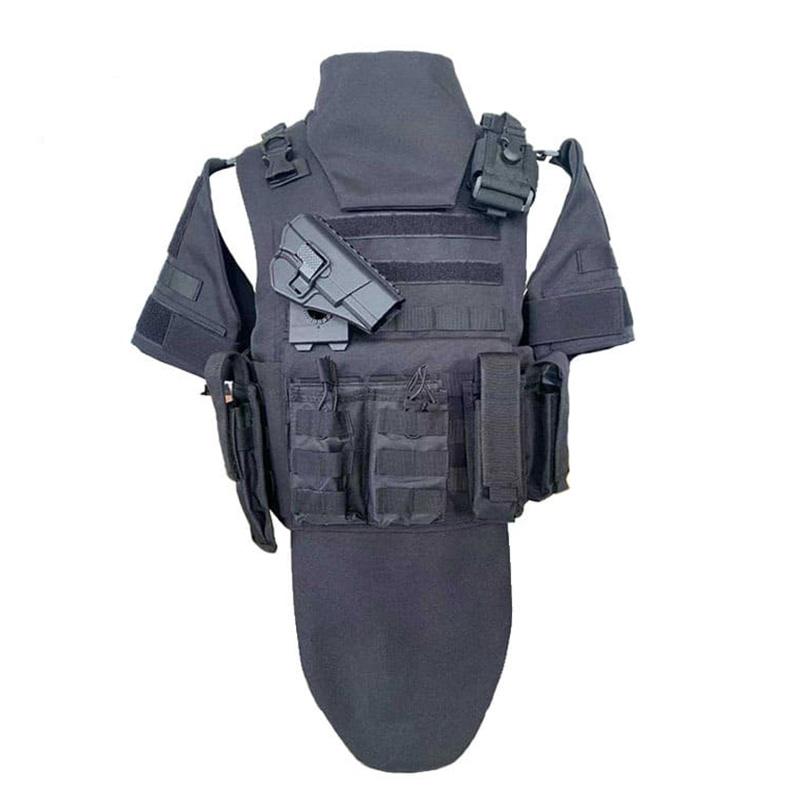

NIJ Level IV certified full body armor. 10 integrated panels protect neck, shoulders, torso, waist & groin. Stops 7.62x51mm M2AP & .30-06 M2AP. Lightweight 5.6kg design. Adjustable for 120-270 lbs. Ships from USA.
I. Product specifications
The Helmetbro Full Protective Level IV Body Armor is engineered for military personnel, law enforcement officers, and high-risk security operators who require comprehensive, no-exception coverage.
Unlike standard vests that protect only the chest and back, this wrap-around system integrates 10 individual ballistic panels to shield every critical zone: neck, throat, shoulders, front and rear torso, waist, and groin. With NIJ Level IV certification, it stops armor-piercing ammunition while maintaining tactical mobility through advanced materials and ergonomic design.
Built-in 10 ballistic panels provide 0.68㎡ of protection with zero dead zones—only the head (compatible with ballistic helmets) and limbs remain exposed for maximum agility.
II.Technical Specifications
| Parameters | Detailed Data |
|---|---|
| Product Name | Helmetbro Full Protective Level IV Body Armor |
| Protection Level | NIJ Level IV (NIJ 0101.06 compliant) |
| Ballistic Panels | 10 integrated panels: neck guard, shoulder pads (2), front panel, back panel, waist guards (2), groin protector (2) |
| Panel Material | 45 layers of polymer polyethylene (PE) composite |
| Soft Armor Material | Balanced Aramid Fabric (SAP) inserts |
| Hard Plate Compatibility | Accepts NIJ III, III+, IV plates in HAP pockets (ICW configuration) |
| Total Weight | 5.6kg (12.3 lbs) |
| Protection Area | 0.68㎡ (7.3 sq ft) |
| Carrier Material | 1000D Oxford fabric (available in PU coated abrasion-resistant nylon, Cordura, or cotton) |
| Sizing | One-size-fits-all adjustable via shoulder and waist Velcro straps |
| Fit Range | Adults 120 to 270 pounds (54kg to 122kg) |
| Color Options | Black, Military Green, Sand, Camouflage, and more |
| Ventilation | Air mesh fabric improves airflow around body |
| Attachment System | MOLLE / PALS webbing for accessories |
| Comfort Features | Front/back and shoulder comfort padding; adjustable shoulders |
| Environmental Resistance | Anti-aging, waterproof, moisture-proof, UV-proof |
| Warranty | 10-year warranty on main body |
| Shipping | Ships from the USA |
III.Key Features
1.True Full Body Protection (Zero Dead Zones)
Unlike standard vests that leave the neck, shoulders, waist, and groin exposed, this system integrates 10 individual ballistic panels covering every vital area. This wrap-around design ensures comprehensive protection in high-risk environments.
2. Protective layer structure: The protective layer structure of the bulletproof and stab-proof clothing is composed of 45 layers of polyethylene fiber non-woven fabric (four orthogonal layers) + 1 layer of 4.5mm thick foam plastic.
3. Shell sealing performance: The protective layer is sealed with an anti-seepage and anti-seepage black protective shell, and the sealing edge is even. The protective cover material is impermeable and has a hydrostatic pressure resistance of not less than 18kPa.
4. Flexible to wear: Flexible to wear, easy to put on and take off. After wearing it, the free movement of the arms and the human body's movements such as kneeling, jumping, running, pitching, and turning should not be significantly restricted.
5. High quality: The outer layer is made of 1000D Oxford cloth, and the protective layer is made of 45 layers of polyethylene fiber non-woven fabric. Features sturdy structural design, excellent tensile strength and wear resistance. 100% money back or exchange guarantee if you're not satisfied with the item within 30 days.
IV. Bulletproof test
1. Room temperature bulletproof: Tested using 1979-style 7.62mm light submachine gun and 1951-style 7.62mm pistol bullets (lead core). In the case of a valid hit, if the bullet is blocked, the maximum groove depth should be less than or equal to 25mm.
2. Soak bulletproof: Soak the bulletproof and stab-proof clothing in room temperature water for 30 minutes, and then perform a bulletproof test. To withstand effective bullet impact, the maximum indentation depth of the backing should be less than or equal to 25 mm.
3. High temperature bulletproof: After the high temperature test (+55℃±2℃, constant temperature for 4 hours), perform the bulletproof test within 15 minutes. In the case of an effective hit, the bullet is blocked and the maximum sinking depth of the backing is ≤25min.
4. Low-temperature bulletproof performance: After the low-temperature test (-20℃±2℃, constant temperature for 4 hours), conduct the bulletproof performance test.
V.NIJ Ballistic Test Report
All Helmetbro body armor and vests must pass the NIJ ballistic test before they are sold on the market. They are essential tactical equipment for soldiers and police.
