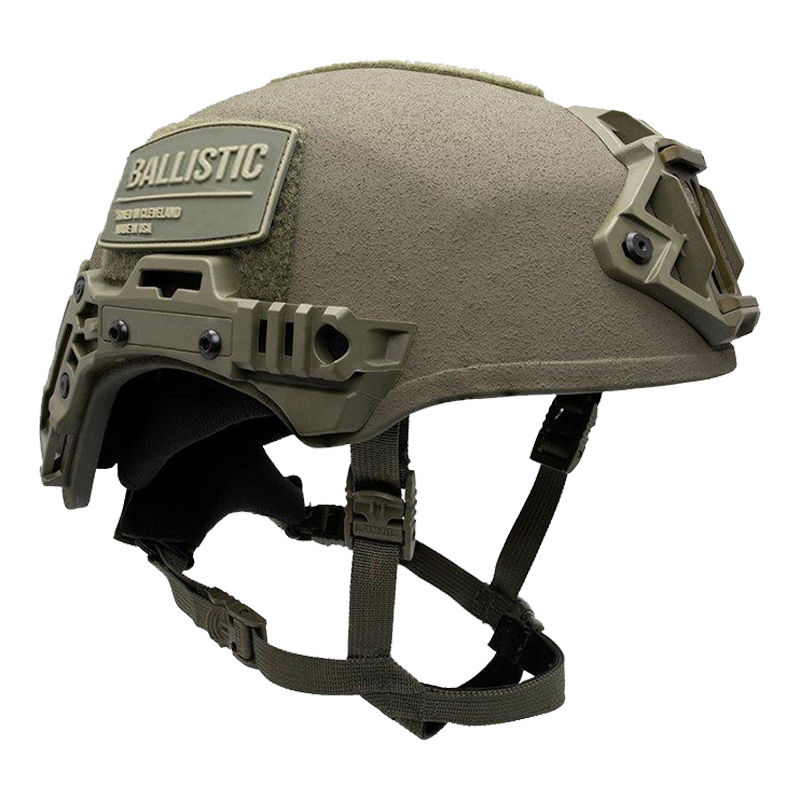

PRODUCT DESCRIPTION
Ballistic performance meets NIJ Level III-A (according to NIJ STD 0106.01/0108.01) standard.
Features a hybrid composite shell for increased strength and a unique geometry for optimal fit.
Innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability.
Zorbium foam liner protects against impact and allows for an overhead communications headband.
Customizable fit is achieved through a set of moveable comfort pads.
A lanyard-compatible Wilcox shroud* secures any standard NVG mount.
EXFIL Rail 3.0 accessory mounting system is 25% lighter than the previous EXFIL Rail 2.0 system and is compatible with all EXFIL accessories.
*NOTE: While the Wilcox W shroud comes standard with the EXFIL Ballistic, the NVG mount/interface required for attaching night vision devices to the helmet, such as the Wilcox G24, is not included.
PERFORMANCE
Ballistic Performance
NIJ Level III-A (according to NIJ STD 0106.01/0108.01)
Fragment Performance
17gr V50 ≥ 2400 ft/s (731 m/s)
Backface Deformation
9mm FMJ RN @ 1400 ft/s (425 m/s)
BFD < 25.4 mm all locations
Blunt Impact Performance
Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02) - average below 70G across all impacts and temperatures
Weight
SIZE |
COMPLETE SYSTEM |
SHELL |
SIZE 1 (M/L) |
2.6 lbs (1.18 kg) |
1.75 lbs (0.79 kg) |
SIZE 2 (XL) |
2.75 lbs (1.25 kg) |
1.8 lbs (0.84 kg) |
Complete system weight includes helmet shell, accessory rails, impact liner and retention system.
